| Model | 1 | 2 | 3 | 4 | 5 | 6 |
| 1 | MXL | XL | L | H | XH | XXH |
| 2 | HTD3M | HTD5M | HTD8M | HTD14M | HTD20M | – |
| 3 | STD3M | STD5M | STD8M | STD14M | STD20M | – |
| 4 | RPP3M | RPP5M | RPP8M | RPP14M | RPP20M | – |
| 5 | AT2.5 | AT5 | AT10 | AT20 | – | – |
| 6 | T2.5 | T5 | T10 | T20 | – | – |
| Note: Timing pulley models not listed in the table can also be custom-made upon request. | ||||||
| Minimum Diameter (mm) | Maximum Diameter (mm) | Tooth Width (mm) | |
| 14 | 800 | 560 | |
| Max. OD of Internal Bore Type (mm) | Max. Length of Internal Bore Type (mm) | Max. OD of Integrated Pulley Type (mm) | Max. Length of Integrated Pulley Type (mm) |
| 500 | 120 | 500 | 120 |
| For specifications beyond the above production range, please contact us for further confirmation. | |||
| 1. Aluminum Alloy | 2. 45# Steel | 3. Stainless Steel | 4. Nylon | 5. Copper |
| Available | Available | Available | Available | Available |
| Material | Surface Treatment | Remarks |
| Aluminum Alloy | Natural anodizing, black anodizing | Processed according to application requirements |
| 45# Steel | Standard blackening, electroplated blackening, bright chrome plating, hard chrome plating | Processed according to application requirements |
| Other Materials | Processed according to application requirements | |
Note: Timing pulley models not listed in the table can also be custom-made upon request.

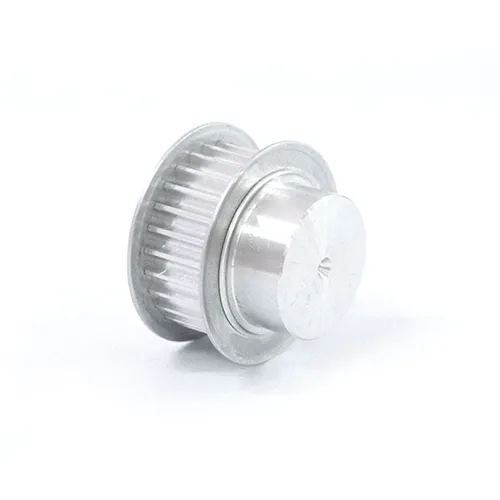

Our aluminum timing pulleys are widely used in equipment that requires precise motion control, stable transmission, and custom drive solutions.
Automation Equipment
Packaging Machinery
Conveyor and Material Handling Systems
