Engineering plastic material for lightweight and low-noise operation
Accurate tooth profile for stable synchronous transmission
Smooth operation with reduced vibration
Corrosion-resistant and suitable for various environments
Custom machining for bore, size, and tooth profile
OEM and non-standard production supported
| Model | 1 | 2 | 3 | 4 | 5 | 6 |
| 1 | MXL | XL | L | H | XH | XXH |
| 2 | HTD3M | HTD5M | HTD8M | HTD14M | HTD20M | – |
| 3 | STD3M | STD5M | STD8M | STD14M | STD20M | – |
| 4 | RPP3M | RPP5M | RPP8M | RPP14M | RPP20M | – |
| 5 | AT2.5 | AT5 | AT10 | AT20 | – | – |
| 6 | T2.5 | T5 | T10 | T20 | – | – |
| Note: Timing pulley models not listed in the table can also be custom-made upon request. | ||||||
| Minimum Diameter (mm) | Maximum Diameter (mm) | Tooth Width (mm) | |
| 14 | 800 | 560 | |
| Max. OD of Internal Bore Type (mm) | Max. Length of Internal Bore Type (mm) | Max. OD of Integrated Pulley Type (mm) | Max. Length of Integrated Pulley Type (mm) |
| 500 | 120 | 500 | 120 |
| For specifications beyond the above production range, please contact us for further confirmation. | |||
| Aluminum Alloy | 45# Steel | Stainless Steel | Nylon | Copper |
| Available | Available | Available | Available | Available |
| Material | Surface Treatment | Remarks |
| Aluminum Alloy | Natural anodizing, black anodizing | Processed according to application requirements |
| 45# Steel | Standard blackening, electroplated blackening, bright chrome plating, hard chrome plating | Processed according to application requirements |
| Other Materials | Processed according to application requirements | |
Note: Timing pulley models not listed in the table can also be custom-made upon request.
Our plastic timing pulleys are widely used in systems requiring quiet operation and precise transmission.

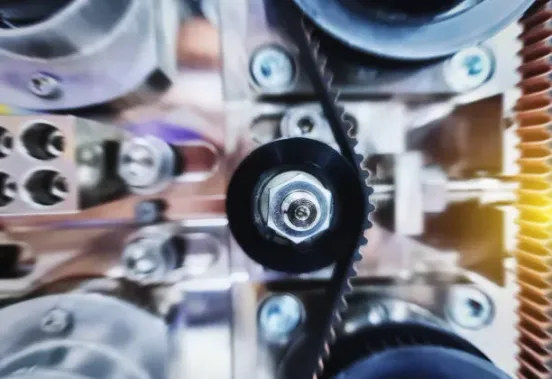

Automation Equipment

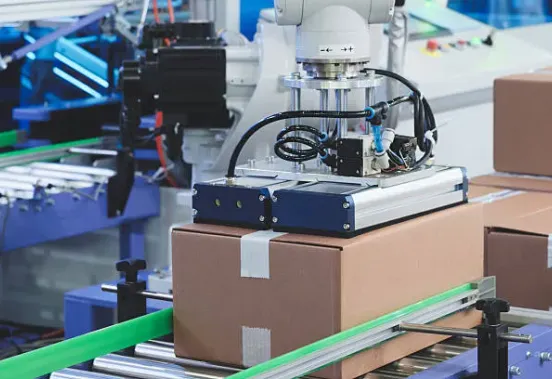

Packaging Machinery

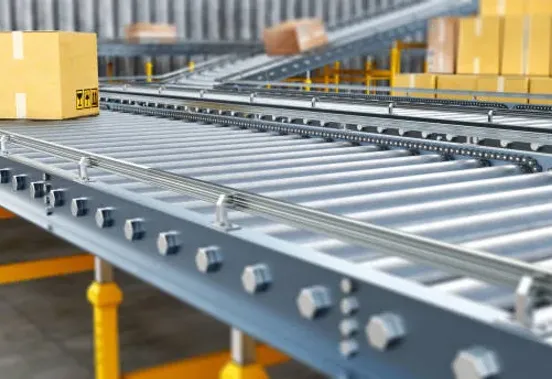

Conveyor and Material Handling Systems
